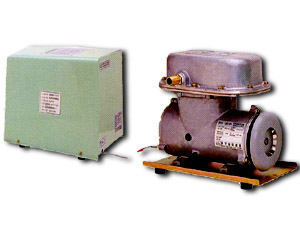

D.C BLOWER |
|
 |
* It has good cooling system and uses large-scale aluminum air-cap which has abundantvolume.
* wih little consumption of electrical currents thanks to the special design and highly efficient monitor whirling with low temperature. |
 |
| voltage |
type |
outlet air volume per 1 minute |
electric current |
output |
weight(CN) |
R.P.M |
applying vehicle |
| DC 12V |
DHC40-12 |
40? (0.12kgf/?) |
4A |
40W |
8.9kg(7.7kg) |
1,650 |
1~1.4TON |
| DHC60-12 |
60? (0.12kgf/?) |
5A |
50W |
8.9kg(7.7kg) |
1,650 |
1~1.4TON |
| DHC80-12 |
80? (0.14kgf/?) |
7.5A |
60W |
13.1kg(10.2kg) |
1,650 |
1~1.4TON |
| DHC100-12 |
100? (0.16kgf/?) |
12A |
70W |
13.1kg(10.2kg) |
1,650 |
1~1.4TON |
| DC 24V |
DHC40-24 |
40? (0.12kgf/?) |
2.5A |
40W |
8.9kg(7.7kg) |
1,650 |
2TON |
| DHC60-24 |
60? (0.12kgf/?) |
3A |
50W |
8.9kg(7.7kg) |
1,650 |
2~2.5TON |
| DHC80-24 |
80? (0.14kgf/?) |
4A |
60W |
13.1kg(10.2kg) |
1,650 |
3.5~4.5TON |
| DHC100-24 |
100? (0.16kgf/?) |
6A |
80W |
13.1kg(10.2kg) |
1,650 |
5TON |
| DHC120-24 |
120? (0.18kgf/?) |
7A |
90W |
13.1kg(10.2kg) |
1,650 |
8TON |
|
 |
DHC 80, 100, 120 |
 |
|
|
|
|
|
|
